codice: 789388

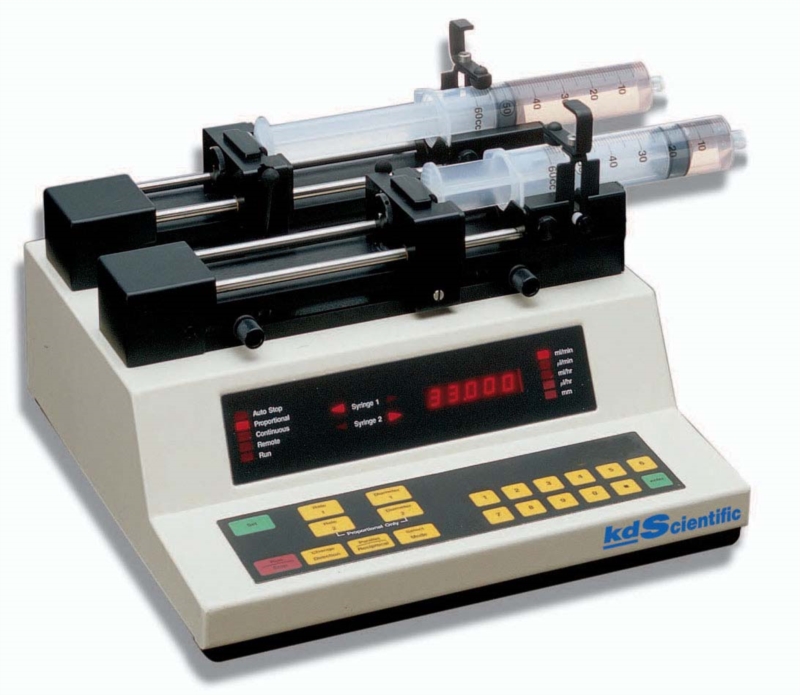

GEMINI 88 Indipendent Dual Rate Syringe Pump System

The NEW KDS Gemini 88. This unique pump is really two pumps in one. Each side of the Gemini 88 has its own syringe rack, motor and leadscrew. The pump can infuse simultaneously at different rates, or infuse with one syringe and withdraw with the other. When combined with a valve box it provides continuous delivery.

The Gemini Syringe Pump offers continuous infusion or withdrawal, 24 hours a day, 365 days a year with the accuracy and low flow of a KD Scientific syringe pump.

Features

  • Continuous delivery 24/7
  • RS232 computer interface
  • Daisy chain up to 100 pumps
  • Wide variety of syringes from 0.5ul – 140ml
  • High or low pressure
  • CE certification
  • TTL interface
  • 57 lbs of linear force
  • 12 month warranty



Specifications
#of Syringes:
  • 2
Accuracy
  • 0.35%
Average Linear Force
  • 57 lbs
Communications
  • RS-232, TTL
Communications Level
  • 2
Depth English
  • 11.25 in
Depth Metric
  • 28.6 cm
Display
  • LED, 5 digit, numeric
Flow Rate Maximum
  • 106.6 ml/min
Flow Rate Minimum
  • 0.0004 μl/hr
Height English
  • 6 in.
Height Metric
  • 15.2 cm
Input Power Connection
  • 36 VDC 1.4 Amps
Motor
  • 2 motors, 1/2 to 1/4 microstepping,
        microprocessor controlled, 0.9° step angle
Motor Stepping 1
  • 1,600 at 1/2 stepping; 3,200 at 1/4 stepping Revolution of
        Lead Screw
Net Weight English
  • 15lb
Net Weight Metric
  • 6.8 kg
Non Volatile Memory
  • Storage of all settings
Pusher Travel Rate
    Maximum
  • 95.25 mm/min
Pusher Travel Rate
Minimum
  • 0.726699 μm/min
RS-232
  • RJ11-4 Connector
Step Rate Maximum
  • 416.7 μsec/step
Step Rate Minimum
  • 27.3 sec/step
Step Resolution
  • 0.33 μm/step
Syringe Size Maximum
  • 140 ml
Syringe Size Minimum
  • 0.5 μl
TTL
  • 9-pin connector
Voltage Range
  • Selectable, 95 to 130 VAC, 60 Hz or 220 to 260 VAC, 50 Hz
Width English
  • 12.5 in
Width Metric
  • 31.1 cm


6712,40 €
+ iva
